Product Details

Spot welder model properties
Name of machine:	DC spot welding machine	Load sustained Rate:	95%	Model weight:	100KG
Brand manufacturer:	Voith welding machine	Input voltage:	220V	Machine size:	Length 720 * width 560 * height 1080mm
Mechanical model:	SCW-3000	Output voltage:	2.5V	Welding capacity	銅 1.52，不銹鋼 1.52mm
Rated power: 30	3000W	Driving mode:	Pneumatic	Cooling mode:	Wind cooling
Cylinder stroke:	63*75	Pressure control:	Air pressure	Welding time:	0.1-1 second

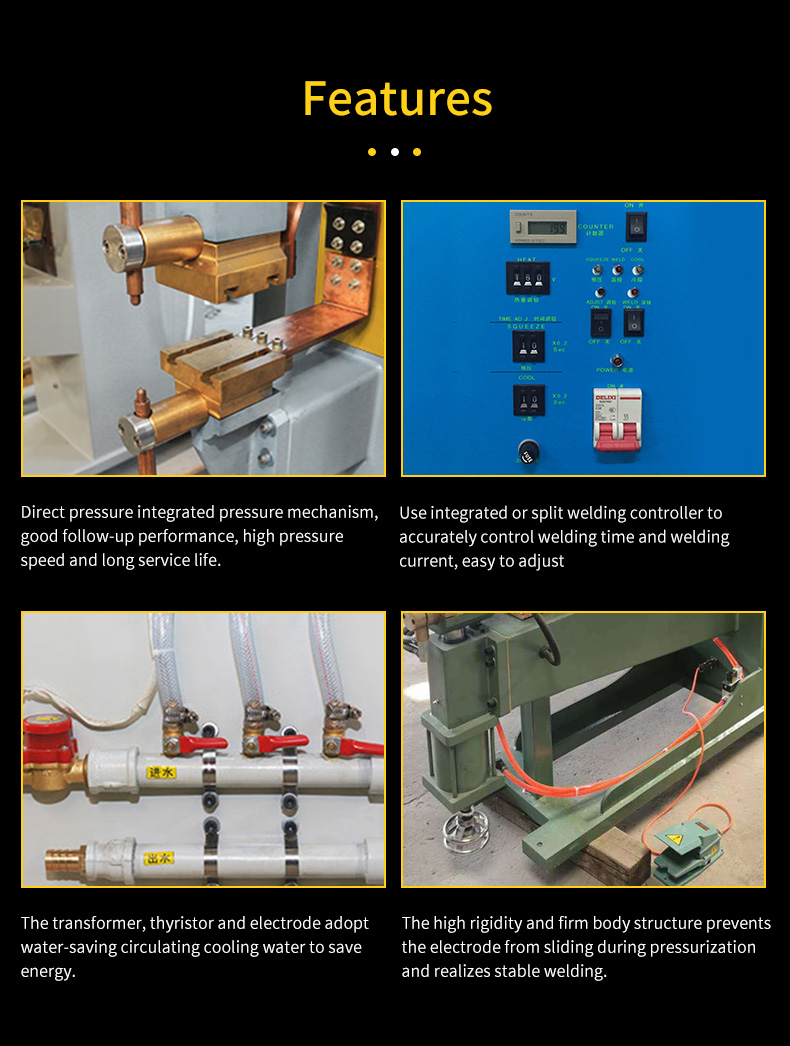

Performance features: the electrode is on both sides of the upper and lower sides, single point welding operation, foot switch, manual feeding, simple and convenient operation; microcomputer control, precise and durable.
● It adopts soft start mode and full digital integrated circuit to control constant current charging, which is faster and more stable.
● The energy waste caused by heating of current limiting resistor can be avoided without charging current limiting resistor, which can save energy by 40% compared with ordinary capacitor spot welding machine.
● The imported famous brand emergency charge discharge capacitor has stable capacity and long service life.
● The digital charging voltage display is more accurate and intuitive.

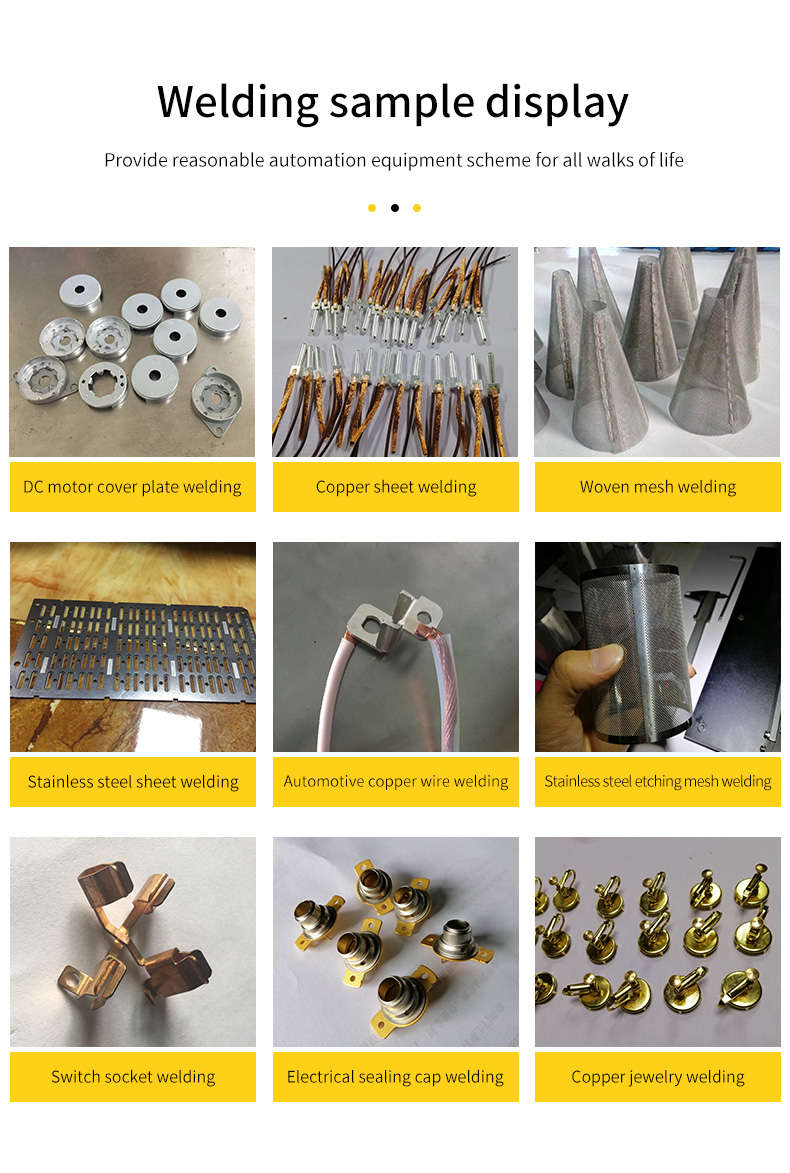

Application: wide range of applications, especially suitable for aluminum, copper, stainless steel, superalloy, (nickel) tungsten and other conductive, thermal conductivity of metal plate, wire, wire welding and welding between dissimilar metals. Such as: thermocouple, various sensors, switches, silver contacts, resistors, capacitors, condenser microphone, toys, clock motor, stainless steel, copper, copper wire, carbon brush welding processing.

Features of capacitor energy storage welding machine:

The capacitor energy storage welding machine uses the capacitor to store energy and release the current instantaneously. At the same time, the large current passes through the contact of the workpiece to produce resistance heat, which reaches the melting state and cools and crystallizes to form the welding effect.

The standard power of capacitor energy storage machine produced by our company includes scw-3000 and scw-5000. Its advantages are as follows:

It is widely used

It can weld stainless steel and nonferrous metals such as copper, aluminum, titanium and silver, and overcome the difficult problem of welding dissimilar metals such as copper and aluminum.

Strong and beautiful

The welding is firm, the solder joints are not black, and the grinding process is omitted, which is especially suitable for the processing of export-oriented products.

Energy saving

This kind of welding machine takes low instantaneous power consumption from the power grid, and the electric energy with high power factor. Compared with the power frequency welding machine of the same welding power, the electricity consumption is only 1/71/10, and the use cost is low. Flexible pressurization speed adjustment adopts German "FESTO" and Japanese "SMC" solenoid valves, cylinders and drain oil feeders to obtain stable, fast and flexible pneumatic performance.

Industry Examples

Batteries, electronics, home appliances, kitchen utensils, etc.

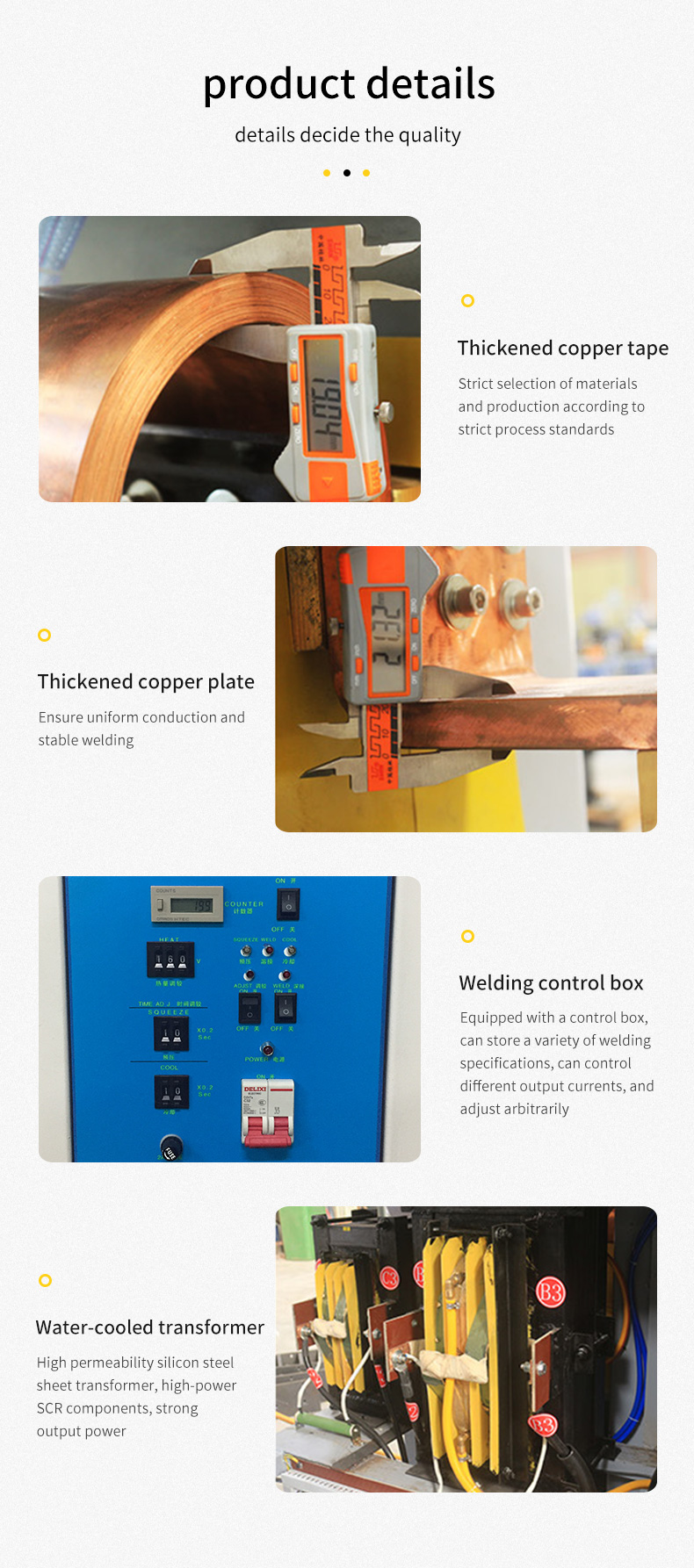

◆ Japanese "MARCON" "HITACHI" high-speed spot welding machine special capacitors.

◆ Japanese "SMC" or German "FESTO" pneumatic pressure structure

◆ German "IXYS" and "SEMIKRON" high power controllable

◆ Pure Japan Nippon Steel Parts Transformer

◆ Sweden high hardness chromium copper, aluminum oxide copper welding nozzle
